Motor Control Board (Wi-Fi & Bluetooth)

Hardware

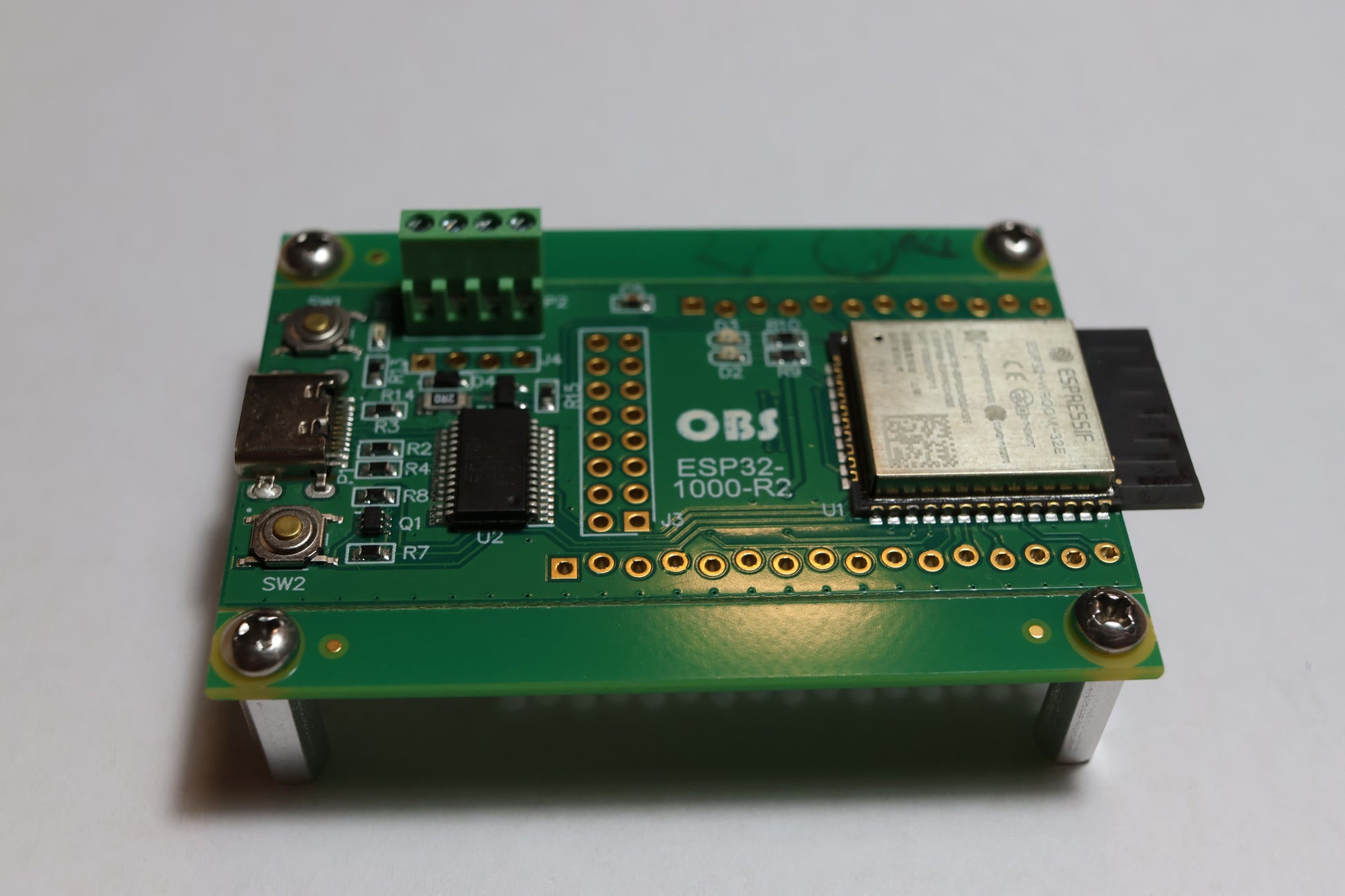

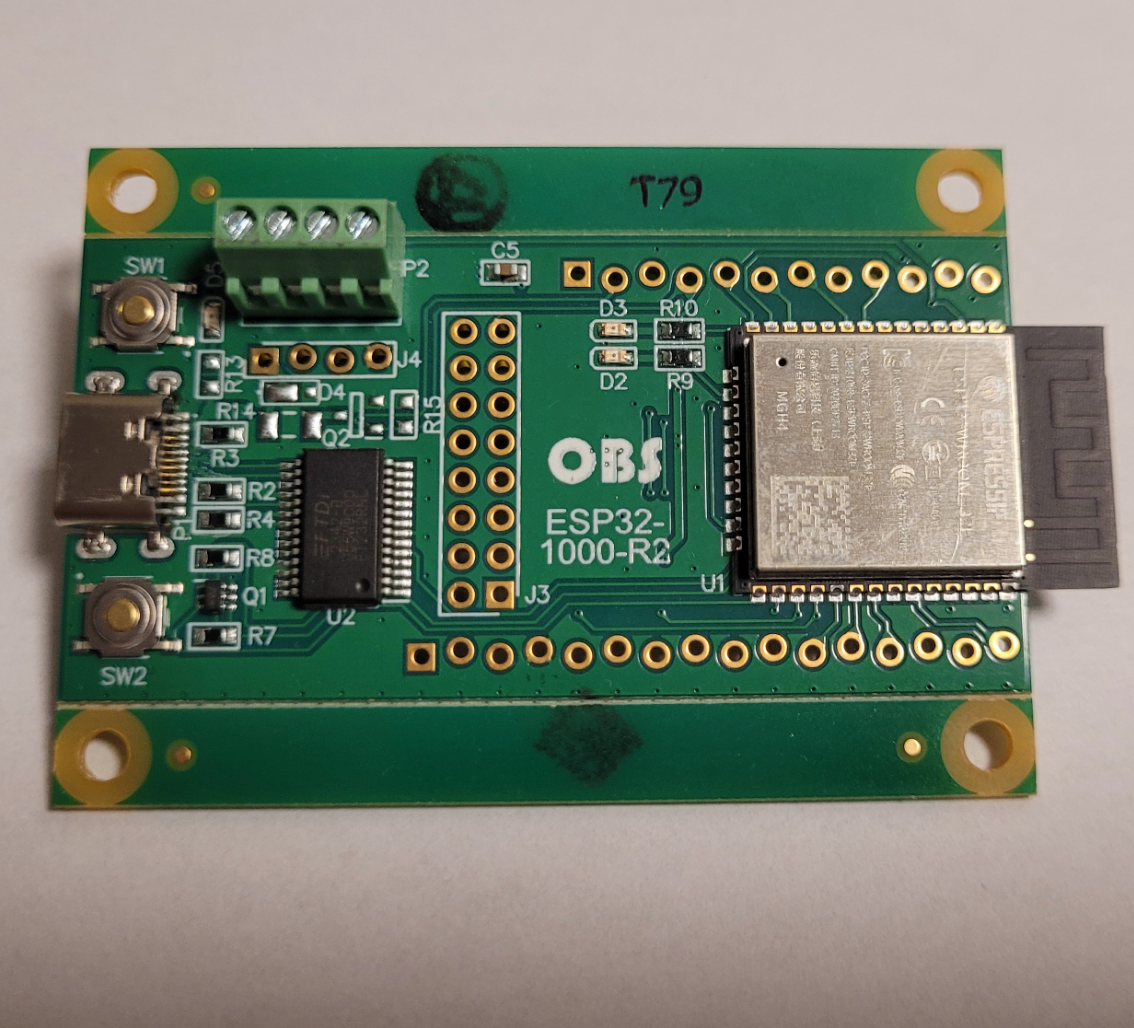

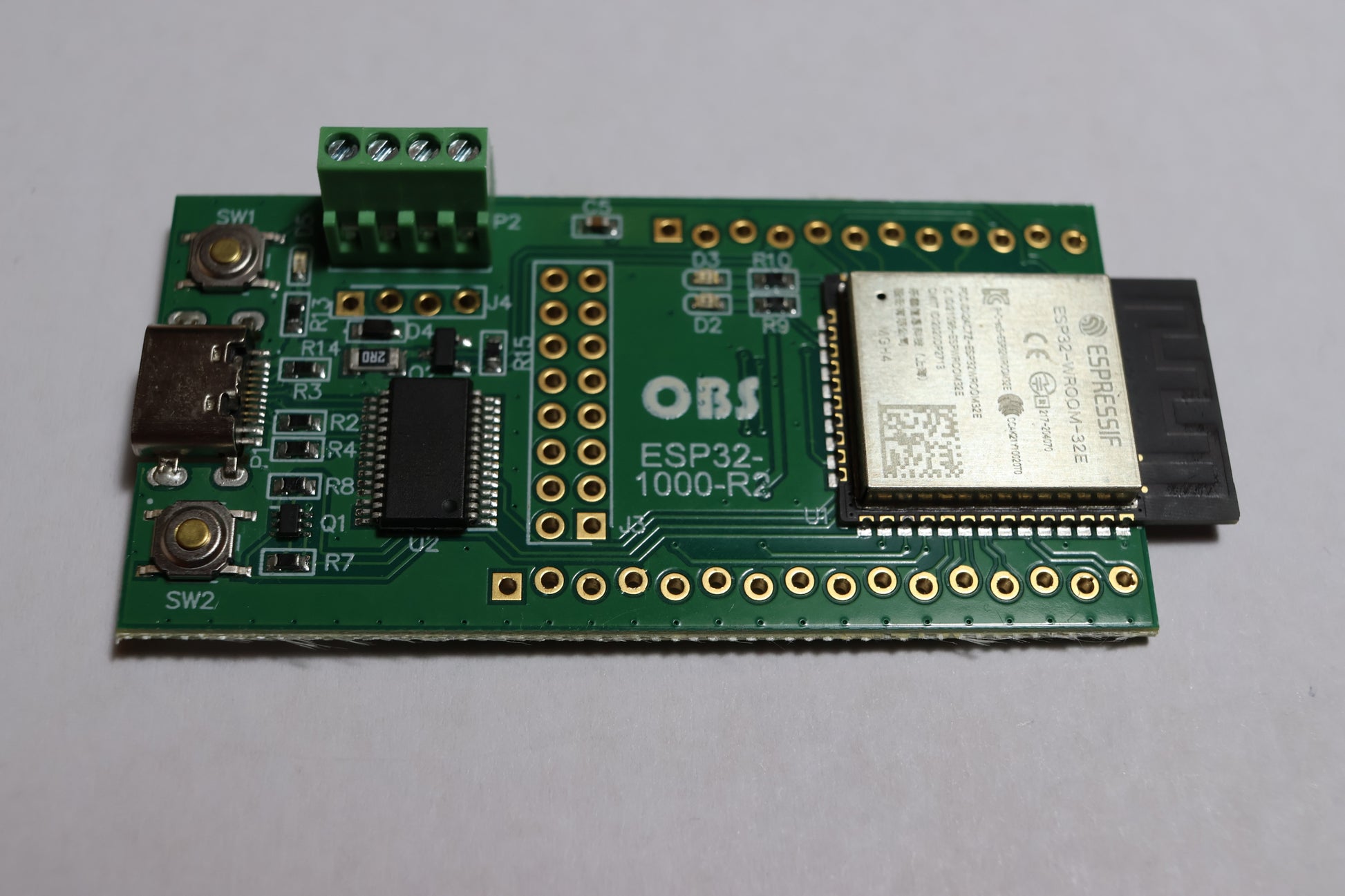

The IMU Board is powered by the Espressif ESP32-WROOM-32E module, featuring two 32-bit LX6 Xtensa MCUs. This versatile module supports Wi-Fi (802.11 b/g/n), Bluetooth Classic, and Bluetooth Low Energy (BLE), enabling a wide range of applications, including:

• IoT devices
• AI/ML edge computing
• Low-power sensor networks
• Audio streaming
• General control systems

Key features include:

• Rich peripheral set: SPI, I2C, I2S, ADC, UART
• 4 MB flash memory for program storage

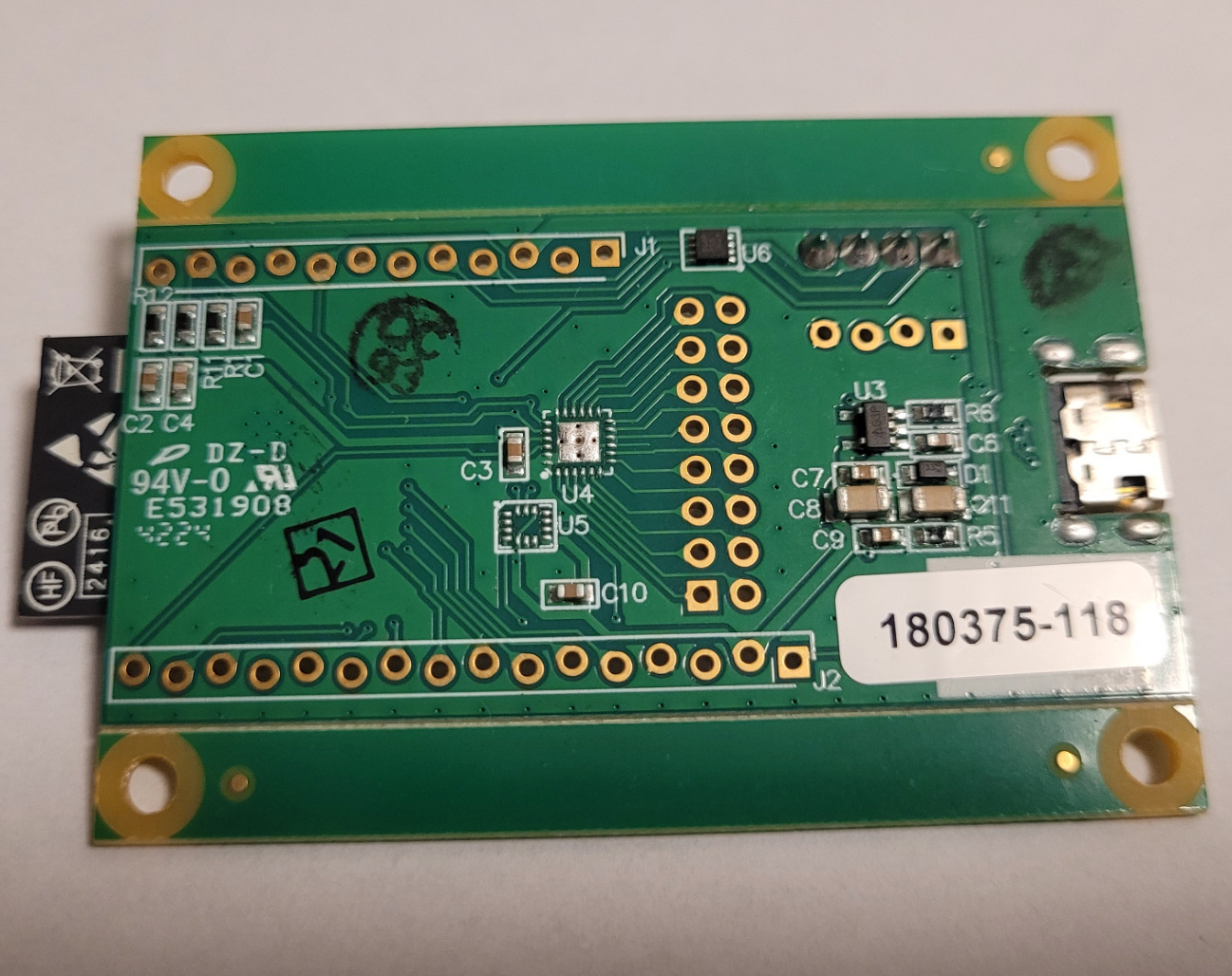

• Integrated 3-axis gyroscope and 3-axis accelerometer with temperature sensing

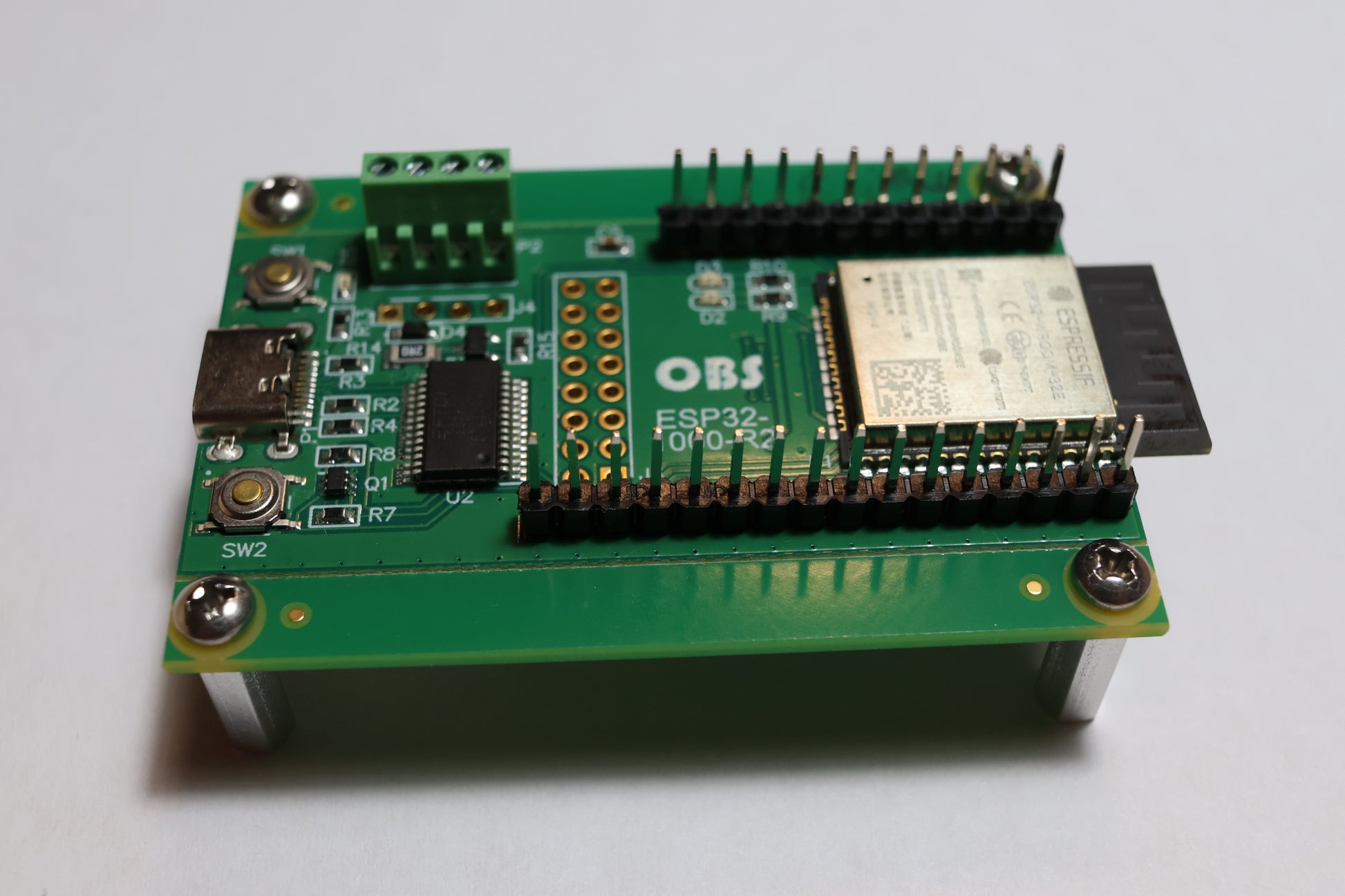

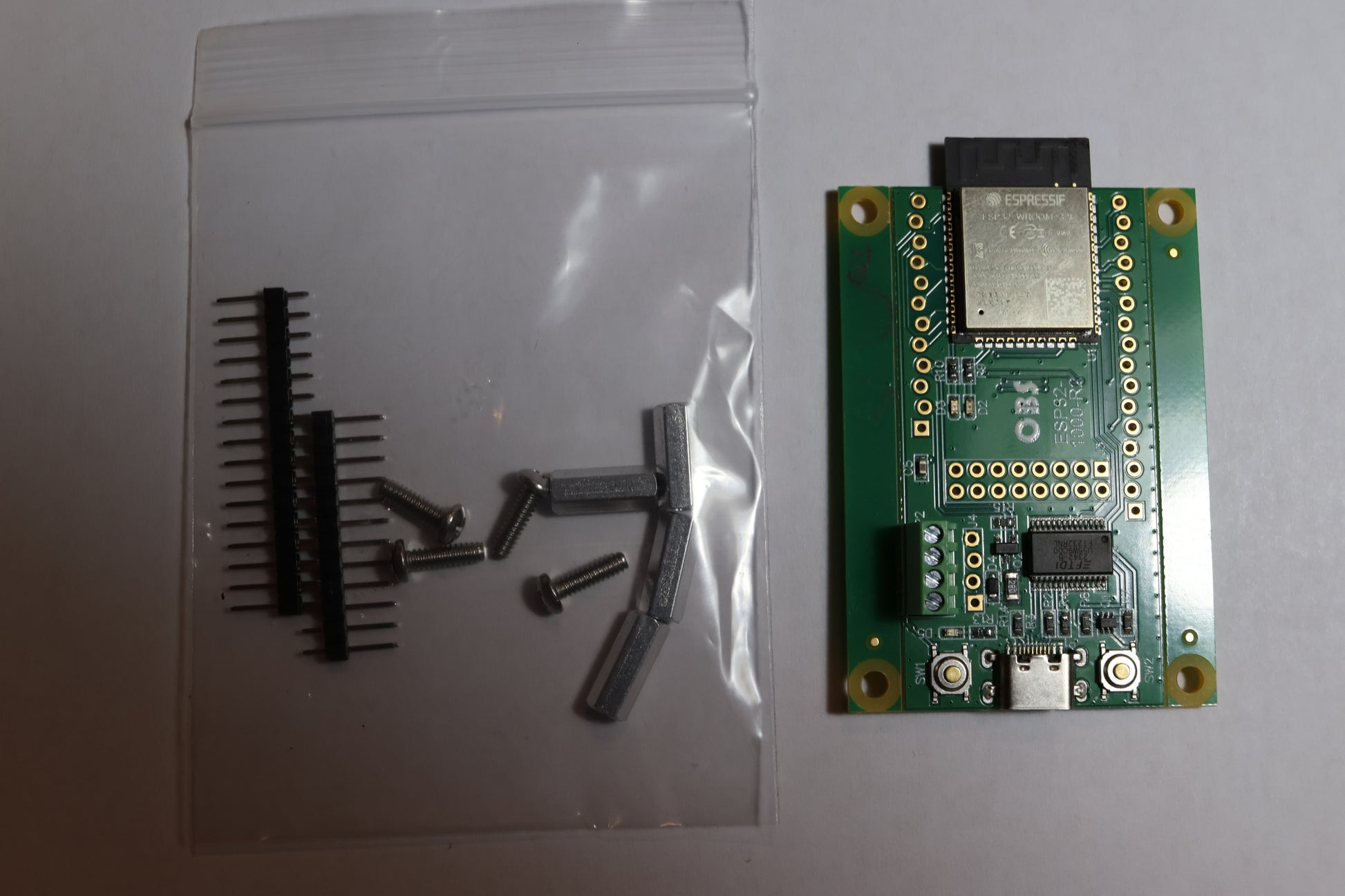

• Standard 0.1” header spacing for easy bread board prototyping


Capabilities

Motor Control

At the heart of the board’s motion system is the DRV8210 integrated motor driver, featuring:

• Four N-channel power FETs with a built-in charge pump regulator
• 100% duty cycle operation capability
• Multiple control interface modes:
  • PWM (IN1/IN2)
  • Phase/Enable (PH/EN)
  • Independent half-bridge
  • Parallel half-bridge
• Up to 1.76 A peak output current
• Built-in protection: UVLO, OCP, TSD

Wireless Connectivity

• Wi-Fi: 802.11 b/g/n, data rates up to 150 Mbps
• Bluetooth: Classic + BLE for low-energy applications


Software Compatibility

The IMU Board is designed for flexible development, supporting:

• Arduino framework – Arduino Store
• MicroPython (with Thonny IDE) – Thonny.org
• Example code available on GitHub: OBS-DEV-ENG
